Advance manual gel testing with the power of interfaced digital card reading in a compact,  fully integrated tabletop platform. Networks can standardize IH testing no matter the facility size.

Main benefits

Lower your risks

Computer assisted interpretation lowers your margin of error and offers complete traceability.

Save time

DG Reader Net scans and interprets DG Gel cards for complete and ready-to-transfer associated user and reagent data.

Work efficiently

Intuitive software, simple system management and minimal maintenance avoids workarounds and unproductive data entry.

Maximize your resources

With less maintenance required and the option to combine different card types to perform one test you can waste fewer lab resources.

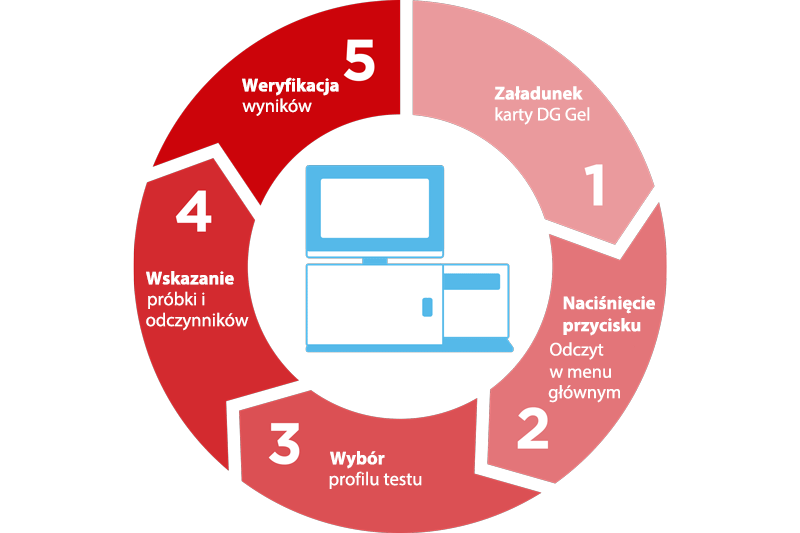

  1. Load DG Gel cards.
  2. Press the read option.
  3. Select the test type from the menu.
  4. Scan reagents used in performing the test.
  5. DG Reader Net displays the assigned profile, sample ID, and reagents used in the sidebar. It will automatically validate and export the results to the Laboratory Information System.
Reading and reporting of DG Gel cards
DG Reader net video thumbnail

DG Reader Net

Solutions for the next generation of blood banks and test labs. Discover the key features and benefits of this incredible instrument.

DG Reader Net

Main features:

  • Reading and interpretation of processed DG Gel cards.
  • Barcode identification of cards, samples, and reagents.
  • High-resolution color CCD camera.
  • Dual function as a compact, stand-alone system or fully integrated into Grifols scalable solutions.
  • Integrated computer with an adjustable touchscreen. Complete traceability of reagents, samples, tests, results, and operators.
  • Ability of users to modify results.
DG Reader Net

Dimensions and weight

Height: 15.98 in (40.6 cm)
Width: 17.3 in (43.9 cm)
Depth: 11.3 in (28.6 cm)
Weight: 18.7 lbs (8.5 kg)

Electrical requirements

Voltage: 100-240 V
Frequency: 50-60 Hz
Maximum input power consumption: 60 W
Consumption in inactive state: 15 VA
Fuses: 2 x T2AL 250V, 5 x 20 mm
Protection against electric shocks: Class I
Installation category: Overvoltage category II (local levels, instruments, portable equipment, etc.)

Operating conditions

Temperature: 59°F - 86°F (15°C - 30°C)
Maximum relative humidity non-condensing: 85%
Maximum altitude: 9,842.52 ft (3,000 m)
Power supply maximum voltage fluctuations: ±10% of the nominal voltage

Sample station

Reading system: High-resolution color reading using a CCD camera


Others

Total reading speed: 1 card <2 secs

Outputs to peripherals: Standard interfaces:
•   3 RS232 connections
•   4 USB ports (rear)
•   2 LAN connections (Wi-Fi)

Remote connection: Yes, for authorized operators via a web application to provide access to:
•   Worksheet
•   Results
•   Database
•   Quality control
•   User management

Remote diagnostics: technical support can remotely connect to the system
