Clinical diagnostics
HELIA Automated System for immunoblot testing
Total immunoblot automation from primary sample tube to result interpretation.

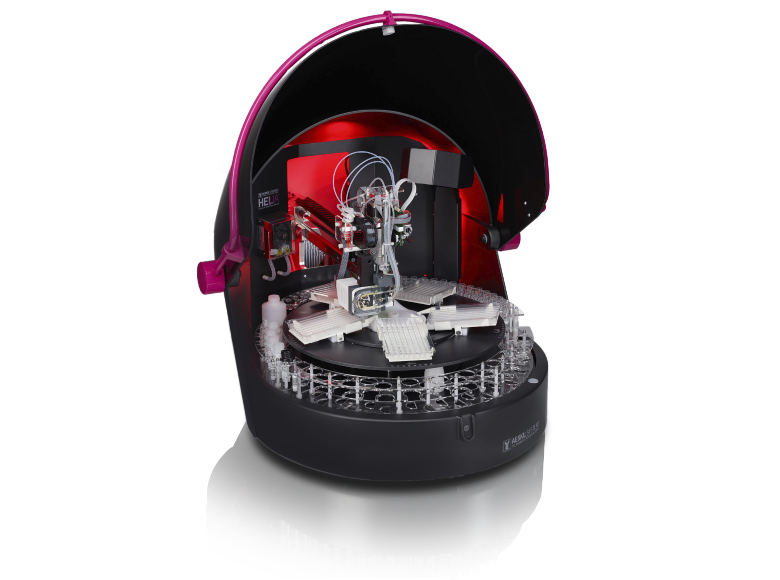

HELIA Automated System for immunoblot testing
Packed with innovative immunoblot processing and reading technology you will be able to standardize and easily implement immunoblot testing in an all-in-one PC with an integrated camera module that will occupy minimal space in your lab.
Compact
Standardize your testing with everything you need for immunoblot processing and reading with a compact, all-in-one system.

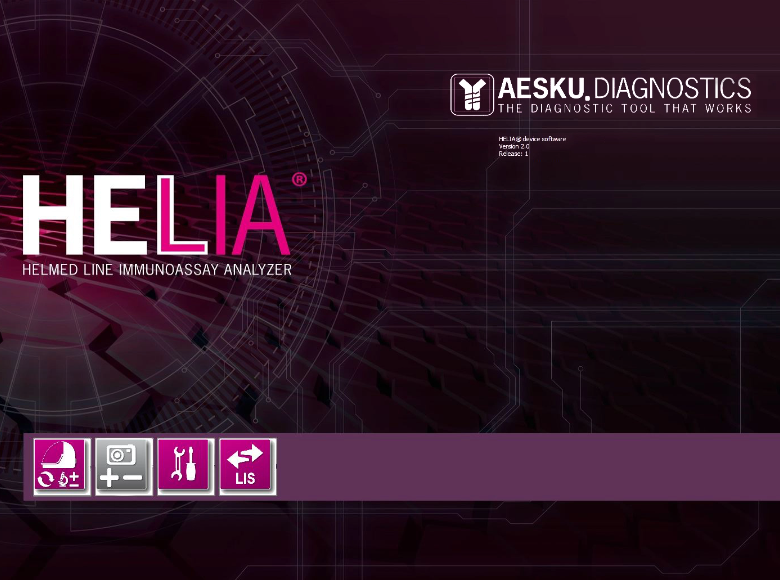

Reliable Software
Improve your sample detection and optimize the strip detection and the image evaluation of the strip blots simultaneously with secure and reliable software.
Product specifications
HELIA Automated System for immunoblot testing
Product Detail
Work mode
- Specification
-
Batch
Automates
- Specification
-
Blot processing and image capturing
LIS connectivity
- Specification
-
Yes
Barcode recognition of
- Specification
-
Sample
Camera
- Specification
-
5 mp
Number of samples
- Specification
-
40
Sample volume
- Specification
-
1-300 ul
Test panels
- Specification
-
Up to 9 panels per run
Sample probe
- Specification
-
Stainless steel
Liquid system
- Specification
-
2 syringes, 2 peristaltic pumps
Max. reagent volume
- Specification
-
2 ml
System liquid bottle(s)
- Specification
-
2
Waste bottle
- Specification
-
2 L
Reagent positions
- Specification
-
18
Blot processing software
- Specification
-
Open
Imaging
- Specification
-
Closed, only available for AESKUBLOTS®
Number of tests
- Specification
-
7 autoimmune, 2 serology, 7 allergy, 7 food intolerance
Image capture
- Specification
-
3 seconds per tray, usin&wet strips
Power consumption
- Specification
-
75 W
PC
- Specification
-
External PC included
| Product Detail | Specification |
|---|---|
|
Work mode |
Batch |
|
Automates |
Blot processing and image capturing |
|
LIS connectivity |
Yes |
|
Barcode recognition of |
Sample |
|
Camera |
5 mp |
|
Number of samples |
40 |
|
Sample volume |
1-300 ul |
|
Test panels |
Up to 9 panels per run |
|
Sample probe |
Stainless steel |
|
Liquid system |
2 syringes, 2 peristaltic pumps |
|
Max. reagent volume |
2 ml |
|
System liquid bottle(s) |
2 |
|
Waste bottle |
2 L |
|
Reagent positions |
18 |
|
Blot processing software |
Open |
|
Imaging |
Closed, only available for AESKUBLOTS® |
|
Number of tests |
7 autoimmune, 2 serology, 7 allergy, 7 food intolerance |
|
Image capture |
3 seconds per tray, usin&wet strips |
|
Power consumption |
75 W |
|
PC |
External PC included |
